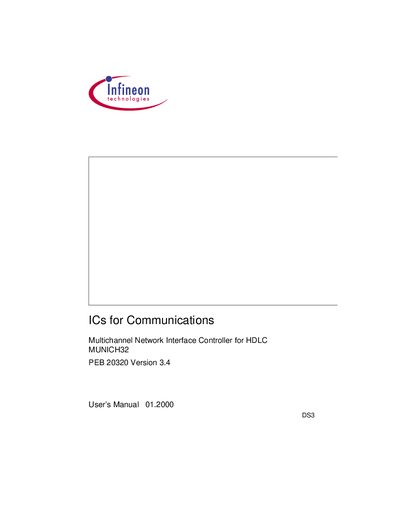

infineon ICs for Communications Multichannel Network Interface Controller for HDLC MUNICH32 PEB 20320 Version 3.4 User Manual 01.2000 Manual

MUNICH32 PEB 20320 product characteristics and applications

Brand: Infineon
Category: Other Electronics
Document type: User Manual
Language: English
Pages: 252
File format: PDF
File size: 2.2 MB
Published: 15 February, 2012
Updated: 30 September, 2023
MD5 checksum: F3D4BAA1CBBE1F3E541471AE44D98CE9
PDF: infineon ICs for Communications Multichannel Network Interface Controller for HDLC MUNICH32 PEB 20320 Version 3.4 User Manual 01.2000 Manual PDF

About this manual

The Infineon MUNICH32 (device number PEB 20320) is a multichannel network interface controller designed for HDLC and related protocols. It supports up to 32 independent communication channels and provides serial multiplexed full‑duplex I/O for various PCM highway speeds.

The manual covers functional description, operational procedures, register maps, electrical characteristics, package outlines, and application notes, including source code examples for device drivers and configuration.

What's inside

Introduction
Functional Description
Operational Description
Detailed Register Description
Application Notes
Application Hints
Electrical Characteristics
Package Outlines
Appendix

Specifications

Number of channels	Up to 32 independent communication channels
Supported data rates	2048‑, 4096‑, 1544‑ or 1536‑Kbit/s PCM highways
Package type	PEB 20320 P‑MQFP‑160‑1
Version	3.4 CMOS

Frequently asked questions

How many communication channels does the MUNICH32 support?

It supports up to 32 independent communication channels.

What is the package type of the MUNICH32?

The device is supplied in a PEB 20320 P‑MQFP‑160‑1 package.

What is the version and technology node of the MUNICH32?

The controller is version 3.4 and implemented in CMOS technology.
