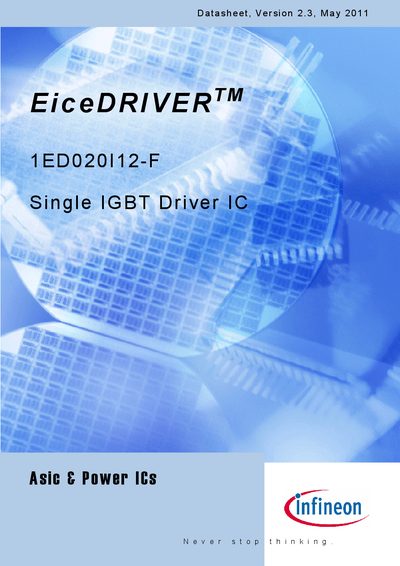

Datasheet for Infineon's EiceDRIVER 1ED020I12-F single IGBT driver IC, detailing features, specifications, and application notes.
The EiceDRIVER 1ED020I12-F is a single‑channel isolated IGBT driver IC offering a coreless transformer, galvanic insulation, and integrated protection functions such as UVLO, watchdog timer, and active shut‑down. It supports 600 V/1200 V IGBTs with a 2 A rail‑to‑rail output and includes desaturation and Miller‑clamp protection.
The document provides a block diagram, functional description, pin configuration, electrical parameters, insulation characteristics, timing diagrams, package outlines, and application notes for PCB layout and thermal management.
| Positive power supply output side (VVCC2) | -0.3 V to 20 V |
|---|---|
| Negative power supply output side (VVEE2) | -12 V to 0.3 V |
| Gate driver output voltage (VOUT) | VVEE2‑0.3 V to VCC2+0.3 V |
| Maximum short‑circuit clamping time (tCLP) | 10 µs |
| Maximum short‑circuit clamping current (ICLAMP/OUT) | 500 mA |
| Gate driver high‑output maximum current (IOUT) | 2.4 A (at 2 µs) |
The driver can source up to 2.4 A for a 2 µs pulse.
The device is supplied in a PG‑DSO‑16‑15 (Plastic Dual Small 1) package.
