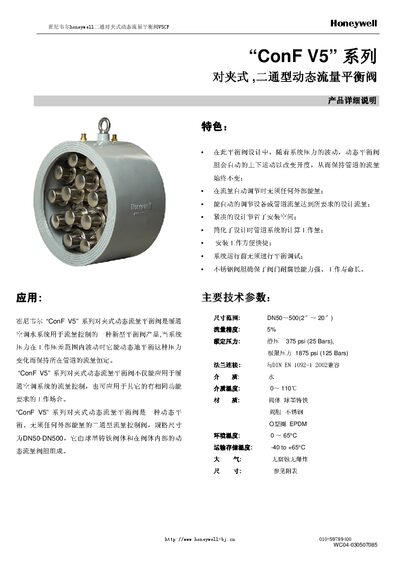

Honeywell ConF V5 series dynamic flow balancing valve product manual with applications, features, technical specs and installation instructions.
The ConF V5 series dynamic flow balancing valve is a two‑port, clamp‑type valve used in HVAC and other flow‑control applications. It automatically balances pressure fluctuations without external energy, maintaining constant flow in the pipeline.
The manual provides detailed product description, technical parameters, size and weight tables, and step‑by‑step installation guidance to ensure proper setup and safe operation. This manual is written in Chinese.
| Size range | DN50‑500 (2‑20 in) |
|---|---|
| Static pressure rating | 375 psi (25 Bar) |
| Maximum pressure | 1875 psi (125 Bar) |
| Medium temperature range | 0 °C – 110 °C |
| Body material | Cast iron (球墨铸铁) |
| O‑ring material | EPDM |
| Environmental temperature range | 0 °C – 65 °C |
| Transport / storage temperature range | -40 °C – +65 °C |
The valve is rated for a static pressure of 375 psi (25 Bar) and can withstand up to 1875 psi (125 Bar).
No, the dynamic balancing valve operates without any external energy.
The valve is available in sizes from DN50 up to DN500 (2‑20 inches).
The valve body is made of cast iron (球墨铸铁).
