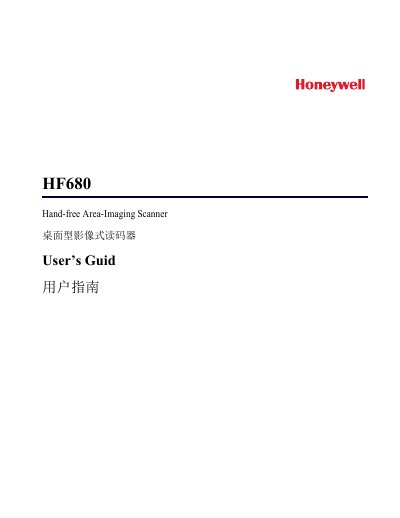

The Honeywell HF680 hand‑free area‑imaging scanner user guide provides setup, configuration, specifications and troubleshooting information.
This user guide covers the HF680 hand‑free area‑imaging scanner, a desktop‑type barcode reader. It includes instructions for unpacking, connecting via USB or RS‑232, configuring barcode symbologies, and programming the device using barcode commands.
The manual also lists mechanical and electrical specifications, environmental limits, scan performance data, and maintenance procedures such as cleaning, cable replacement, and troubleshooting common issues. This manual is written in Chinese.
| Dimensions (L x W x H) | 85 mm x 88 mm x 139 mm |
|---|---|
| Weight | 278 ± 10 g |
| Input Voltage | 5 VDC ± 0.5 V |
| Operating Power | 2.0 W (400 mA @ 5 V) |
| Standby Power | 0.85 W (170 mA @ 5 V) |
| Operating Temperature | -10 °C to 40 °C |
| Scan Pattern | Area Image (1280 × 800 pixel array) |
| Scan Angle | Horizontal 47°, Vertical 30° |
| Decode Capability | Standard 1D, PDF, 2D symbologies (depends on kit) |
The scanner can operate from –10 °C to 40 °C.
The device scans with a horizontal angle of 47° and a vertical angle of 30°.
It requires a 5 VDC supply with a tolerance of ±0.5 V.
