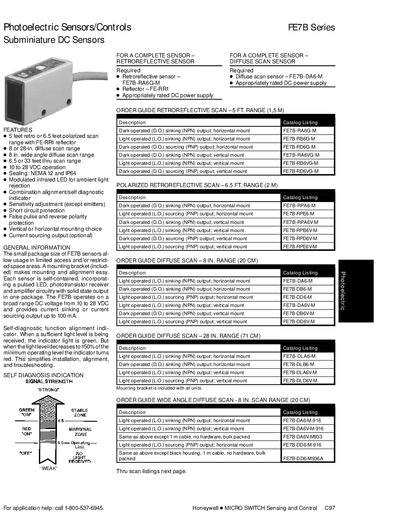

The Honeywell FE7B Series Subminiature DC Sensors datasheet provides features, specifications, order options, and wiring information for these photoelectric…
The FE7B Series Subminiature DC Sensors are compact photoelectric sensors designed for limited‑access or restricted‑space applications. Each unit includes a built‑in pulsed LED, phototransistor receiver, and solid‑state output, with options for horizontal or vertical mounting and a supplied mounting bracket.
The document lists detailed specifications such as supply voltage, output current, response times, and environmental ratings, and includes order guides for retro‑reflective, diffuse, and thru‑scan sensor variants, as well as installation and wiring instructions.
| Supply Voltage | 10 to 28 VDC |
|---|---|
| Output Load Current | 100 mA max |
| Typical Response Time (On) | 1 msec (2 msec max) |
| Temperature Range | -4°F to 140°F (–20°C to 60°C) |
| Sealing | NEMA 12 and IP64 |
| Weight | 3.5 ozs. (99.2 g) |
The sensors operate from 10 to 28 VDC.
The maximum output load current is 100 mA.
Both horizontal and vertical mounting are supported, and a mounting bracket is included.
