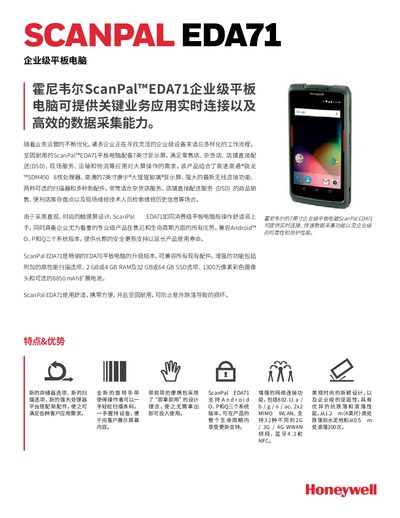

The Honeywell ScanPal EDA71 enterprise tablet data sheet details its rugged 7‑inch design, processor, memory, connectivity, and durability specifications.
The ScanPal EDA71 is a 7‑inch enterprise‑grade tablet featuring a Qualcomm Snapdragon SDM450 8‑core processor, Android 8 (Oreo) OS with upgrade paths to Android P and Q, and options for 2 GB or 4 GB RAM with 32 GB or 64 GB storage. It includes a high‑brightness 1280 × 720 LCD protected by Corning Gorilla Glass, multiple wireless interfaces (Wi‑Fi, Bluetooth 4.2, NFC, and extensive WWAN bands), and optional high‑performance barcode scanners.
Designed for harsh environments, the device meets IP64 protection, survives a 1.2 m drop onto concrete per MIL‑STD‑810G, endures 200 roll‑over cycles, and offers ESD protection of ±12 kV (air) and ±8 kV (direct). It ships with a 4000 mAh battery (optional 8850 mAh) providing over 8 hours of operation, and includes a 13‑MP autofocus camera, various sensors, and expandable microSD storage. This manual is written in Chinese.
| Dimensions (L×W×H) | 214 mm × 118 mm × 21 mm |
|---|---|
| Weight (standard battery) | 550 g |
| Processor | 1.8 GHz Qualcomm Snapdragon SDM450 8‑core |
| Operating System | Android 8 (Oreo), upgradeable to Android P and Q |
| Memory | 2 GB or 4 GB RAM, 32 GB or 64 GB flash |
| Display | 7‑inch HD (1280 × 720) LCD with Gorilla Glass |
| Battery Capacity | 4000 mAh (standard) or 8850 mAh (optional) |
| IP Rating | IP64 |
| Drop Resistance | Survives 1.2 m drop onto concrete (MIL‑STD‑810G) |
| ESD Protection | ±12 kV (air) / ±8 kV (direct) |
It runs Android 8 (Oreo) and can be upgraded to Android P and Q during its lifecycle.
The tablet is rated IP64 for dust and water protection.
It provides more than 8 hours of continuous operation on its standard battery.
It meets MIL‑STD‑810G by surviving a 1.2 m (4 ft) drop onto concrete.
