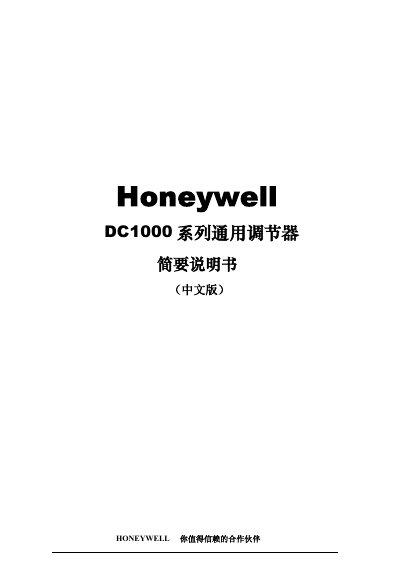

Brief manual for Honeywell DC1000 series universal controllers, covering panel description, auto‑tuning, fault messages, operation steps and wiring diagrams.
This brief manual explains the front‑panel layout of the DC1000 series controllers, including display indicators, LED status lights and key functions such as SET, A/M and auto‑tuning. It also details how to navigate the different operating levels and configure parameters.
Additional sections describe the auto‑tuning procedure, fault codes, program level settings, and provide wiring diagrams for the DC1010, DC1020, DC1030 and DC1040 models. The final page lists product specifications such as panel sizes, input types, output options and communication interfaces. This manual is written in Chinese.
| Panel size options | 48×48, 48×96, 72×72, 96×96 mm |
|---|---|
| Program input types | C: none, P: program, R: platinum RTD, T: thermocouple, L: linear |
| Output options | 1: relay, 2: SSR driver (24 V DC), 3: 4‑20 mA, 5: single‑phase zero‑cross SCR, 6: three‑phase zero‑cross SCR, 7: proportional motor control, 8: single‑phase phase‑shift SCR, 9: three‑phase phase‑shift SCR |
Set the AT parameter to “YES” and the controller will begin auto‑tuning.
Press and hold the SET key for 5 seconds to switch to Level 2.
