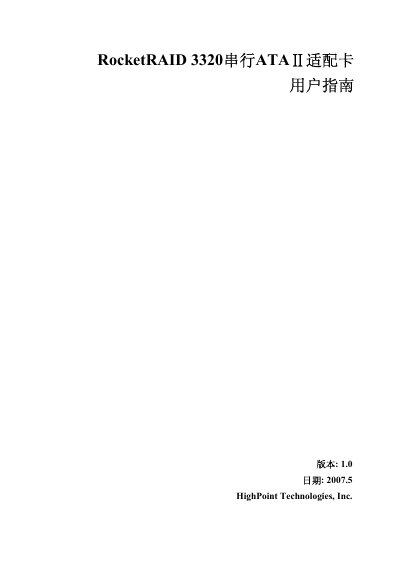

This user guide covers the installation, configuration, and maintenance of the HighPoint RocketRAID 3320 8-channel PCI-E to Serial ATA II RAID controller card.
The HighPoint RocketRAID 3320 is an enterprise-level storage solution featuring an Intel 80333 I/O processor and 128MB DDRII memory with ECC protection. It supports up to eight SATA drives in various RAID configurations, including RAID 0, 1, 5, 6, 10, 50, and JBOD modes.
The manual provides detailed instructions for hardware installation, BIOS configuration, and software management on Windows (Vista, XP, 2000, Server 2003) and Linux distributions. It also covers advanced features such as Online Capacity Expansion (OCE), Online RAID Level Migration (ORLM), and remote management via Web GUI. This manual is written in Chinese.
| Interface Type | PCI-E X8 (Compatible with X16) |
|---|---|
| Internal Ports | 8 SATA ports |
| Supported RAID Levels | RAID 0, 1, 5, 10, 50, 6 and JBOD |
| Drive Capacity Support | Up to 8 SATA II or SATA I drives |
| Memory | 128MB DDRII with ECC protection |
| Processor | Intel 80333 I/O Processor (500MHz) |
The card supports Windows (Vista, XP, 2000, Server 2003), Linux, and FreeBSD.
Yes, the card supports Online RAID Level Migration (ORLM) to convert one type of array into another while data remains accessible.
Yes, it supports Online Capacity Expansion (OCE) to add disks to an existing array without losing data.
A spare disk can be used to automatically rebuild the array, or the system supports hot swap and hot standby for data validity.
