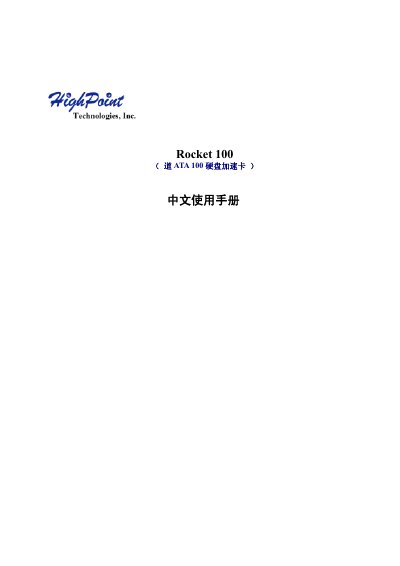

HighPoint Rocket 100 ATA 100 Hard Disk Accelerator User Manual

This Chinese user manual covers the installation, driver setup, BIOS configuration, and troubleshooting for the HighPoint Rocket 100 ATA 100 hard disk…

Brand: HighPoint
Category: Other Computer Accessories
Document type: User Manual
Language: Chinese
Pages: 7
File format: PDF
File size: 179 KB
Published: 12 November, 2011
Updated: 17 October, 2026
MD5 checksum: C16250F2772ED4F1AD72F9A45B96D5F9
PDF: HighPoint Rocket 100 ATA 100 Hard Disk Accelerator User Manual PDF

About this manual

The HighPoint Rocket 100 is a dual-channel Ultra DMA/ATA 100 accelerator card utilizing the HPT370/370A chip. It supports up to four Ultra ATA/100 hard drives and is compatible with operating systems including Windows 95/98/ME, NT4.0, 2K, XP, and Linux. The manual provides step-by-step instructions for hardware installation, including connecting IDE data cables and power supplies. This manual is written in Chinese.

What's inside

Rocket 100 Introduction
Hardware Installation
Adapter Card Installation Confirmation
Driver Installation
BIOS Configuration Program
Troubleshooting
Technical Support

Specifications

Supported Drives	4 Ultra ATA/100 hard drives
Chipset	HPT370/370A
Interface	PCI Slot
Compatible OS	Windows 95/98/ME, NT4.0, 2K, XP, Linux

Frequently asked questions

How do I confirm the Rocket 100 card is correctly installed?

During system startup, look for the screen message 'Press '. If this appears, the card is recognized.

What should I do if the computer cannot recognize the card after installation?

Check if the card is firmly inserted into the PCI slot, or try changing to a different PCI slot.

What type of data cable is required for ATA66/100 drives?

ATA66/100 drives require special IDE data cables; ensure the cable connected to the card is also ATA66/100.
