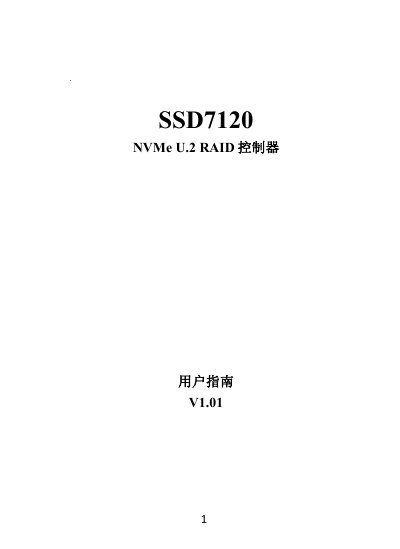

HighPoint SSD7120 NVMe U.2 RAID Controller User Guide

About this manual

The HighPoint SSD7120 is an NVMe U.2 RAID controller designed for PCIe 3.0 x16 slots. The manual details hardware installation steps, including connecting via SFF-8643 cables to the motherboard and backplane.

For software setup, the guide provides instructions for installing drivers on Windows and Linux operating systems. It also explains how to use the HighPoint NVMe Manager utility to configure RAID arrays, manage disk health via S.M.A.R.T. data, and set up email notifications. This manual is written in Chinese.

What's inside

• System Requirements
• Hardware Installation
• Windows Driver Installation
• Linux Setup
• HighPoint NVMe Manager
• RAID Management
• Product Information
• Event Logs

Frequently asked questions

What operating systems are supported?

The controller supports Windows 10 and higher, as well as Linux Kernel 3.3 and higher.

How do I create a new RAID array?

Click 'Create Array' in the NVMe Manager, adjust the block size if needed (from 16K to 1024K), and confirm the settings.

Where can I download drivers?

Drivers and software packages are available for download from the HighPoint website.
