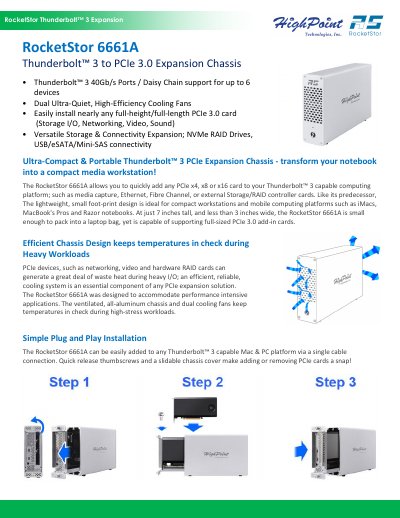

Product leaflet for the HighPoint RocketStor 6661A Thunderbolt 3 PCIe expansion chassis, featuring full-sized card support and versatile connectivity.
The HighPoint RocketStor 6661A is a compact and portable Thunderbolt 3 PCIe expansion chassis designed to transform notebooks into compact media workstations. It supports full-sized PCIe 3.0 cards and includes an efficient cooling system with dual fans to handle high-stress workloads.
| Host Ports | 2x Thunderbolt 3 Ports |
|---|---|
| Daisy Chain Support | Up to six Thunderbolt devices |
| PCIe Slot Type | x4 PCIe 3.0 (open end) |
| Max PCIe Card Length | 8.2 inches |
| Dimensions | 2.25"(W) x 6.42"(H) x 10.12" (D) |
| Weight | 5.18 lbs |
| Power Input | AC 100-240V |
| Power Output | DC 12V 5A |
| MTBF | 920,585 Hours |
| Warranty | 1 Year |
The chassis supports daisy chain connections of up to six Thunderbolt devices.
The enclosure supports full-height PCIe cards with a maximum length of 8.2 inches.
It requires a computer with a USB-C port (Thunderbolt 3) or a Thunderbolt 2 port via an adapter, running Mac OS X 10.10 and later or Windows 8 and later.
