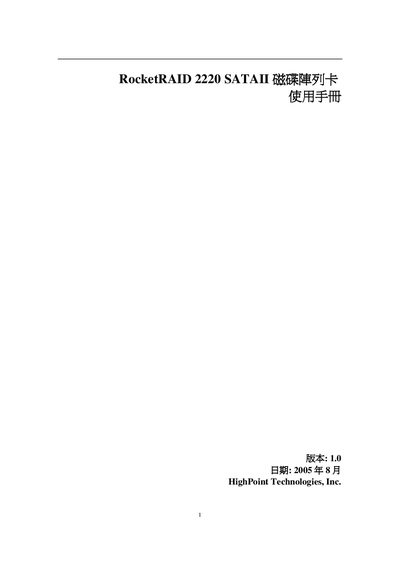

HighPoint RocketRAID 2220 User Manual

RocketRAID 2220 SATAII Disk Array Card User's Manual introduces the features of the product and the instructions for installation, configuration and maintenance of disk arrays

Brand: HighPoint
Category: Other device
Document type: User Manual
Language: Chinese
Pages: 47
File format: PDF
File size: 1020 KB
Updated: 30 September, 2023
MD5 checksum: D100EE8183BBA2D900DB604C0565C886
PDF: HighPoint RocketRAID 2220 User Manual PDF

About this manual

This manual covers the hardware specifications, BIOS settings, and software installation for the RocketRAID 2220 RAID controller. It includes step‑by‑step guidance for Windows and Linux operating systems, as well as detailed explanations of RAID concepts and advanced features such as Online Capacity Expansion and RAID level migration.

Additional sections describe troubleshooting, technical support contacts, and regulatory compliance information for FCC and European standards. This manual is written in Chinese.

What's inside

Introduction
Product Features
RAID Concepts and Terminology
Hardware Configuration
BIOS Settings
Windows Installation
Linux Installation
Software Interface
Online Capacity Expansion & RAID Migration
Technical Support

Specifications

Number of SATA channels	8
Interface	PCI‑X 64‑bit 66/100/133 MHz
Supported SATA drives	8 SATA I/II drives
Maximum per‑drive capacity	2 TB
Maximum total drives	16 drives

Frequently asked questions

Which operating systems are supported by the RocketRAID 2220?

The controller supports Windows 2000, Windows XP, Windows Server 2003, Linux and FreeBSD.

What is the interface type of the RocketRAID 2220?

The card uses a PCI‑X 64‑bit interface running at 66/100/133 MHz.

Download PDF (1020 KB)
