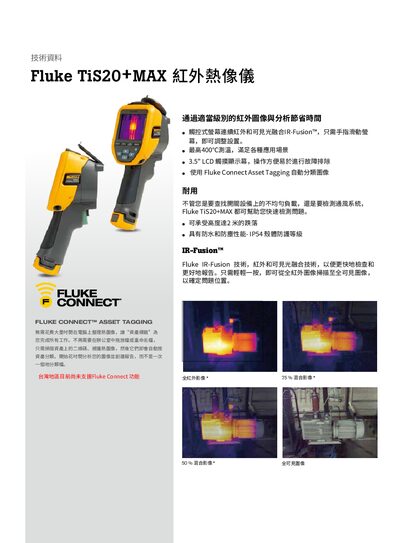

Technical specifications and key features of the Fluke TiS20+MAX infrared thermography camera.
The Fluke TiS20+MAX is a rugged infrared thermometer that combines full‑infrared, mixed‑infrared/visible and full‑visible imaging modes. It features a 3.5" LCD touchscreen, Fluke Connect asset‑tagging for automatic image classification, and an IP54‑rated housing for dust and water resistance.
The device offers a temperature range of –20 °C to 400 °C, up to 5 hours of continuous battery life, and wireless connectivity (802.11 b/g/n). It includes a 4 GB internal memory with optional micro‑SD expansion, and supports multiple languages for global use. This manual is written in Chinese.
| Infrared resolution | 120 × 90 (10,800 pixels) |
|---|---|
| IFOV | 7.6 mRad, D:S 130:1 |
| Field of view | 50° H × 38° V |
| Minimum focus distance | 50 cm |
| Display | 3.5" LCD touchscreen, 320 × 240 resolution |
| Temperature accuracy | ±2 °C or ±2 % (whichever larger) above 25 °C |
| Battery life (continuous, no Wi‑Fi) | >5 hours |
| Wireless connectivity | 802.11 b/g/n (2.4 GHz) |
| IP rating | IP54 |
| Weight | 0.72 kg (1.6 lb) |
The battery provides more than 5 hours of continuous use when Wi‑Fi is disabled.
Yes, it includes 802.11 b/g/n (2.4 GHz) wireless connectivity.
The camera is rated IP54 for dust protection and water‑splash resistance.
