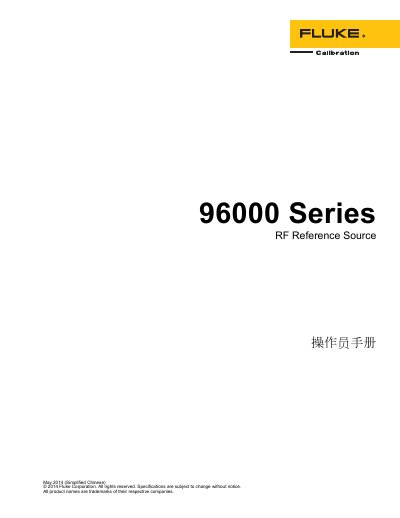

The operator manual provides an overview, technical specifications, setup, operation, and maintenance instructions for the Fluke 96000 Series RF Reference…
This manual describes the Fluke 96000 Series RF Reference Source, a laboratory instrument that generates precise RF reference signals for testing and calibration. It includes safety information, technical specifications, and detailed procedures for preparing the instrument for use.
Key sections cover safety notices, unpacking, power considerations, connection of level‑adjustment heads and microwave output, local and remote operation, configuration profiles, measurement procedures, and operator maintenance such as cleaning and fuse replacement. This manual is written in Chinese.
| Frequency range (96270A) | 0.9 MHz – 310 MHz |
|---|---|
| Frequency range (96040A) | 0.9 MHz – 50.1 MHz |
| Maximum output level (50 Ω load) | +24 dBm |
| Maximum output level (75 Ω load) | +18 dBm |
| Minimum input level | 0.5 V pk‑pk |
The 96040A model operates from 0.9 MHz up to 50.1 MHz with the specified accuracy.
