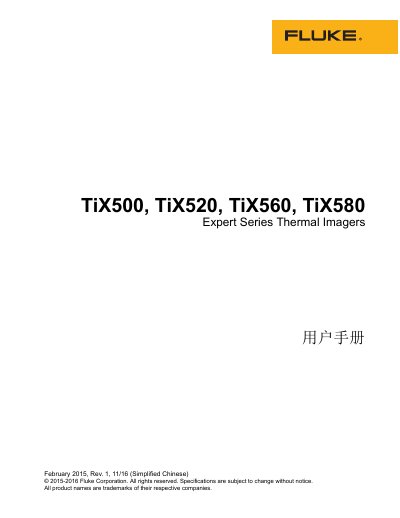

User manual for Fluke TiX500, TiX520, TiX560 and TiX580 Expert Series thermal imagers covering operation, safety, and specifications.
This manual provides detailed instructions for the Fluke TiX500, TiX520, TiX560 and TiX580 Expert Series thermal imagers. It includes safety warnings, product familiarisation, operation steps, menu navigation, image capture, storage options, and connectivity features such as Wi‑Fi, Bluetooth and Fluke Connect.
The document also lists technical specifications, optional accessories, battery maintenance, and warranty information. Users can find contact details for Fluke support and guidance on software integration with SmartView and Fluke Connect applications. This manual is written in Chinese.
| Detector resolution | 320 × 240 (TiX500), 640 × 480 (TiX520), SuperResolution 640 × 480 (TiX560), 1280 × 960 (TiX580) |
|---|---|
| Image capture frequency | 9 Hz or 60 Hz (model dependent) |
| NETD (thermal sensitivity) | ≤0.05 °C at 30 °C (typical) |
| Internal storage | 4 GB internal flash, includes 4 GB micro‑SD card (≈2000 full‑radiance images) |
Call the appropriate number: US 1‑800‑760‑4523, Canada 1‑800‑363‑5853, Europe +31 402‑675‑200, Japan +81‑3‑6714‑3114, Singapore +65‑6799‑5566, or worldwide +1‑425‑446‑5500, or visit www.fluke.com.
The included 4 GB micro‑SD card can store at least 2 000 full‑radiance images.
