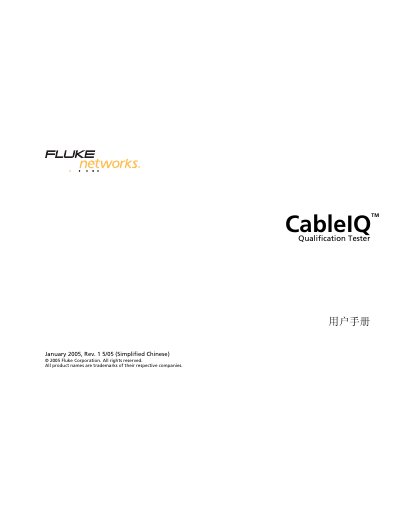

The Fluke CableIQ Qualification Tester user manual provides safety information, setup instructions, and detailed testing procedures for cable diagnostics.
This manual covers the CableIQ Qualification Tester’s features, safety guidelines, physical characteristics, and power requirements. It explains how to register the device, connect adapters, and use the multi‑map remote ID function for advanced cable analysis.
The guide walks users through configuring language and units, setting date and time, performing automatic tests on twisted‑pair, coaxial, and VoIP cabling, and interpreting results such as length, signal performance, and fault locations. Maintenance topics include software updates, battery replacement, cleaning, and troubleshooting. This manual is written in Chinese.
| 工作温度 | 32 °F – 104 °F (0 °C – 40 °C) |
|---|---|
| 存放温度 | -4 °F – +140 °F (-20 °C – +60 °C) |
| 电池类型 | 4 × AA 碱性电池 (NEDA 15A, IEC LR6) |
| 电池寿命 | 约 20 小时（典型使用情况） |
| 显示屏 | 2.5 in 128 × 128 单色 LCD，带背照灯 |
| 长度测试量程 | 0 m – 300 m (0 ft – 1000 ft) |
| 长度分辨率 | 0.1 m (0.1 ft) |
| 典型准确度 | ± 4 % 或 2 ft（取较大值） |
| 自动测试存储容量 | 最多 250 条自动测试记录 |
The device can operate for about 20 hours on a fresh set of four AA batteries.
It operates from 32 °F to 104 °F (0 °C to 40 °C).
The tester can store up to 250 automatic test results.
Select the “Reset to factory settings” option in the menu to restore default parameters.
