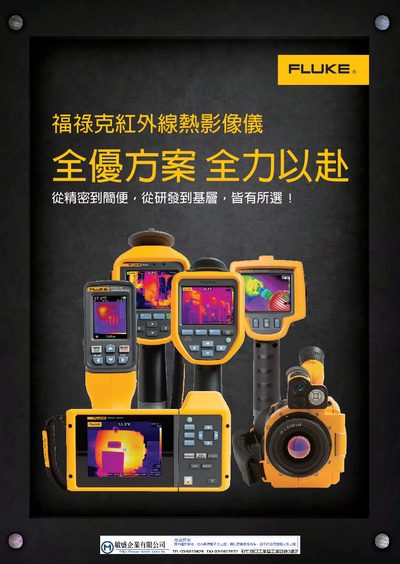

This Fluke product description outlines the features, specifications, and typical applications of its infrared thermal imagers.
The document presents an overview of Fluke's infrared thermal imager family, describing the technology advantages, ergonomic design, and durability tests such as 2 m drop resistance and IP54 protection. It highlights key functions like MultiSharp™ multi‑point focus, IR‑Fusion® visible‑infrared blending, Wi‑Fi connectivity, and interchangeable lenses.
Detailed technical specifications are provided for each model series (e.g., Ti480, Ti450, Ti400, Ti300, Ti200, TiS75, TiS65, etc.), including spatial resolution (IFOV), pixel count, temperature range, thermal sensitivity, and measurement distance. Typical industrial, building‑maintenance, and R&D applications are listed, showing how the imagers support equipment monitoring, quality control, and safety inspections. This manual is written in Chinese.
| IP Protection Rating | IP54 |
|---|---|
| Drop Resistance | 2 m drop test |
| Temperature Measurement Range | -20 °C to 800 °C (selected models) |
| Thermal Sensitivity | ≤ 0.05 °C (selected models) |
| Spatial Resolution (IFOV) | 0.93 mRad (Ti480) |
The imagers can measure temperatures from –20 °C up to 800 °C for models such as Ti480, Ti450, Ti400, Ti300 and Ti200.
All listed models have an IP54 protection rating.
The design is tested to survive a 2‑meter drop.
Thermal sensitivity is ≤ 0.05 °C for the Ti480, Ti450, Ti400, Ti300 and Ti200 series.
