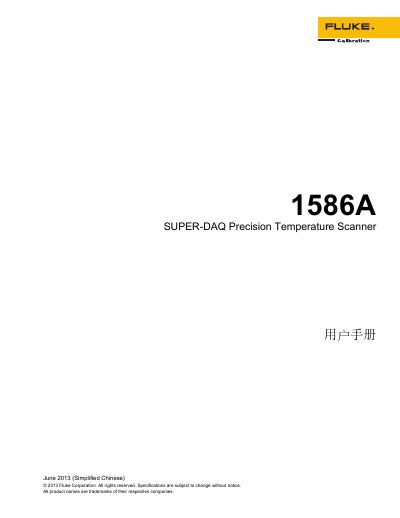

Fluke 1586A SUPER-DAQ Precision Temperature Scanner User Manual

About this manual

This manual covers the Fluke 1586A SUPER-DAQ Precision Temperature Scanner, detailing product overview, technical specifications, safety information, and front‑panel and rear‑panel functions. It guides users through initial setup, power connection, module installation, and configuration of input channels.

Further sections describe scanning and monitoring procedures, data recording, digital multimeter functions, routine maintenance, and a comprehensive error‑message and troubleshooting guide to help resolve common issues such as power‑up problems, USB storage errors, and module recognition failures. This manual is written in Chinese.

What's inside

• Product Overview and Technical Specifications
• Initial Setup and Configuration
• Input and Channel Configuration
• Scanning/Monitoring, Recording and Data
• Measurement/Digital Multimeter Operation
• Maintenance and Care
• Error Messages and Troubleshooting

Frequently asked questions

Why is the screen black even though the LED is on?

The instrument may be in standby mode or the screen saver is active; press any front‑panel key to exit standby or screen saver.

How can I resolve a USB storage read error?

Ensure the USB storage device is fully inserted and properly installed; if the problem persists, try a different USB drive.
