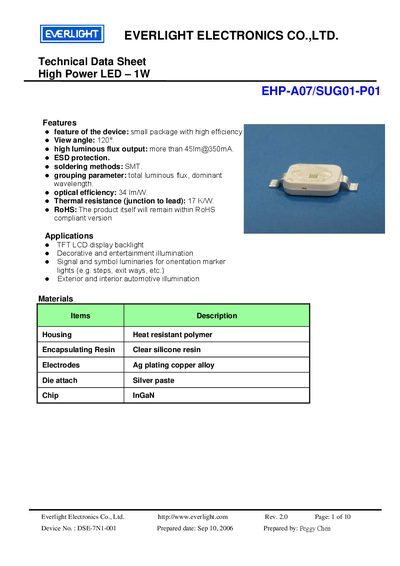

This document is about EHP-A07/SUG01-P01 technical data sheet. It is high power LED with small package, high efficiency, 120° viewing angle, 45lm@350mA luminous flux output, ESD protection, SMT soldering, total luminous flux, dominant wavelength parameters. It is used in TFT LCD display backlight, decorative and entertainment lighting, signal and symbol luminaries for orientation marker lights, etc.
The Everlight EHP-A07/SUG01-P01 is a 1 W high‑power LED with a 120° viewing angle, >45 lm luminous flux at 350 mA, and 34 lm/W optical efficiency. It is suited for backlighting, decorative illumination, automotive lighting, and signage.
The datasheet provides detailed electrical and optical characteristics, mechanical dimensions, recommended soldering conditions, reliability test results, and precautions for storage and thermal management to ensure reliable operation in demanding applications.
| Viewing Angle | 120° |
|---|---|
| Luminous Flux (typical) | >45 lm @350 mA |
| Optical Efficiency | 34 lm/W |
| Thermal Resistance (junction‑to‑lead) | 17 K/W |
| Operating Temperature Range | -40 °C ~ +100 °C |
| Forward Current (max) | 500 mA |
| Power Dissipation (max) | 2.0 W |
| Junction Temperature (max) | 125 °C |
| Forward Voltage (typ.) | 3.55 V – 3.85 V |
| Wavelength Range | 525 nm – 535 nm |
Reflow soldering should not be performed more than two times.
Use a heat sink or high‑thermal‑conductivity substrate (Aluminum or Copper), with a minimum outer heat‑sink size of 25 mm × 25 mm × 1 mm, and consider thermal vias or conductive adhesive.
