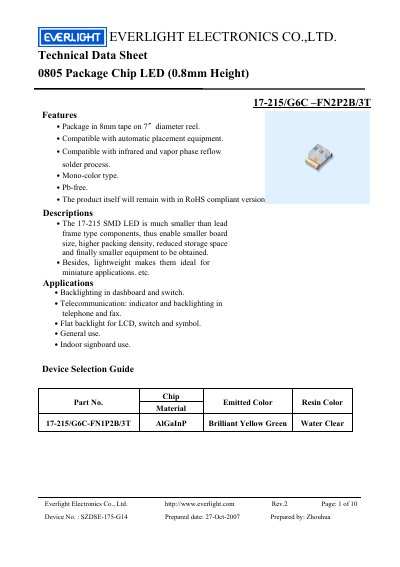

This document is a technical data sheet for LED products. It mainly introduces the package, size, color and other information of the product.
The 17-215/G6C-FN2P2B/3T is a miniature SMD LED chip designed for backlighting, indicator, and general lighting applications. Its small 0805 package enables high packing density and lightweight designs, making it suitable for dashboard, LCD backlight, and indoor signage.
The data sheet lists absolute maximum ratings, typical electro‑optical performance, binning information, and recommended soldering and storage procedures. Reliability test conditions and handling precautions are also included to ensure long‑term operation under RoHS‑compliant conditions.
| Forward Voltage (V_F) typical | 1.75 – 2.35 V @ IF=20 mA |
|---|---|
| Luminous Intensity typical | 36 – 72 mcd @ IF=20 mA |
| Peak Wavelength | 575 nm |
| Operating Temperature range | -40 °C to +85 °C |
| Reflow Soldering Temperature | 260 °C for 10 s |
| Hand Soldering Temperature | 350 °C for 3 s |
The absolute maximum forward current is 25 mA.
Reflow soldering should be performed at 260 °C for 10 seconds, with a maximum of two passes.
Store the LEDs at 30 °C or less and 90 % RH or less, in moisture‑proof bags until ready for use.
The LED is supplied in an 8 mm tape on a 7‑inch diameter reel, compatible with automatic placement equipment.
