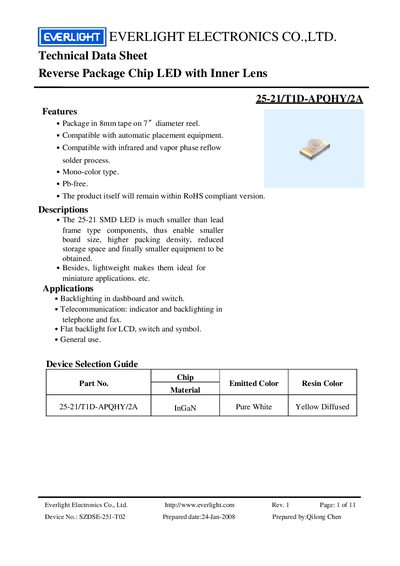

25-21/T1D-APQHY/2A is an SMD LED product produced by Everlight Electronics Co., Ltd., with the following features: it is compatible with automatic placement equipment, infrared and vapor phase reflow soldering process, monochrome, lead-free and RoHS compliant.
The Everlight 25-21/T1D-APOHY/2A is a reverse‑package chip LED with an inner lens, supplied on 8 mm tape in 7‑inch reels. It is a mono‑color, Pb‑free component suitable for backlighting, dashboard indicators, LCD flat‑backlights and general use.
The datasheet provides absolute maximum ratings, electro‑optical characteristics, packaging dimensions, moisture‑resistant handling instructions and recommended soldering profiles to ensure reliable performance in automated placement and reflow processes.
| Reverse Voltage (Vr) | 5 V |
|---|---|
| Forward Current (Iz) | 25 mA |
| Peak Forward Current (Duty 1/10 @1 kHz) | 100 mA |
| Power Dissipation (Pd) | 95 mW |
| ESD (HBM) | 150 V |
| Operating Temperature | -40 °C ~ +85 °C |
| Storage Temperature | -40 °C ~ +90 °C |
| Reflow Soldering Temperature | 260 °C for 10 s |
| Hand Soldering Temperature | 350 °C for 3 s |
| Luminous Intensity (typ) | 45 – 112 cd |
| Viewing Angle (typ) | 70 ° |
| Forward Voltage (typ) | 2.70 – 3.15 V |
The recommended reflow soldering temperature is 260 °C for 10 seconds.
The maximum forward current is 25 mA, with a peak forward current of 100 mA (duty 1/10 @1 kHz).
No, reflow soldering should not be performed more than two times.
