This document is about the datasheet of 3.0mm Round Type LED Lamps A694B/2UY/S530-A3, including product features, descriptions, applications, etc.

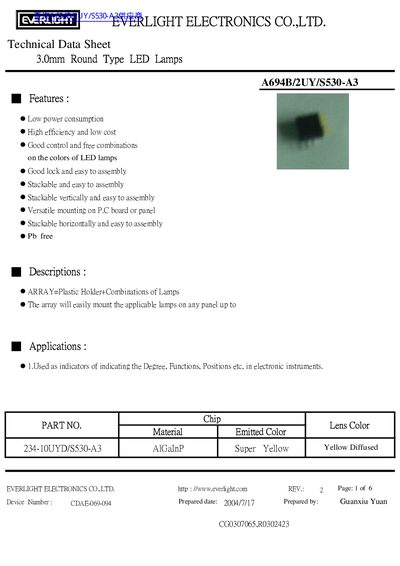

This document is a technical data sheet for the Everlight A694B/2UY/S530-A3 3.0mm round type LED lamps. The product features low power consumption, high efficiency, and versatile mounting options on P.C boards or panels. The lamps are stackable vertically and horizontally and are Pb-free.
| Forward Current | 25 mA |
|---|---|
| Operating Temperature | -40 to +85 °C |
| Storage Temperature | -40 to +100 °C |
| Soldering Temperature | 260 + 5 °C |
| Electrostatic Discharge | 2000 V |
| Power Dissipation | 60 mW |
| Peak Forward Current | 160 mA |
| Reverse Voltage | 5 V |
| Forward Voltage | 2.0 to 2.4 V |
| Luminous Intensity | 16 to 32 mcd |
| Viewing Angle | 4 to 60 deg |
| Peak Wavelength | 591 nm |
They are used as indicators for the Degree, Functions, Positions, etc., in electronic instruments.
Yes, they are stackable vertically and horizontally and are easy to assemble.
The maximum operating temperature is +85 °C.
