Everlight 5 mm Round White LED (T-13/4) 334-15/T1C1-4VXC has high luminous power, typical chromaticity coordinates x=0.30, y=0.29, ESD-withstand voltage is 4KV, and application scenarios include outdoor displays, optical indicators, backlighting, and marker lights.

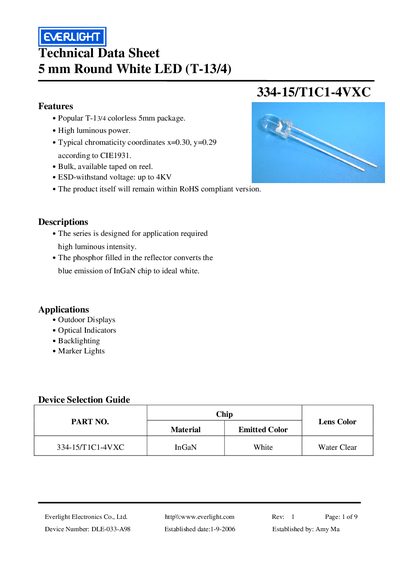

This document is a technical datasheet for the Everlight Electronics Co., Ltd. model 334-15/T1C1-4VXC, a popular T-13/4 colorless 5mm round white LED. The device utilizes an InGaN chip with phosphor to convert blue emission into ideal white light, suitable for applications such as outdoor displays, optical indicators, backlighting, and marker lights.
| Package Type | T-13/4 colorless 5mm package |
|---|---|
| Emission Color | White |
| Peak Forward Current (Iep) | 100 mA |
| Operating Temperature Range | -40 ~ +85 C |
| Luminous Intensity Range | 11,250 - 22,500 mcd |
| Viewing Angle | 15 deg |
| Chromaticity Coordinates (Typical) | x=0.30, y=0.29 |
The device is designed for outdoor displays, optical indicators, backlighting, and marker lights.
Yes, the product itself remains within the RoHS compliant version.
