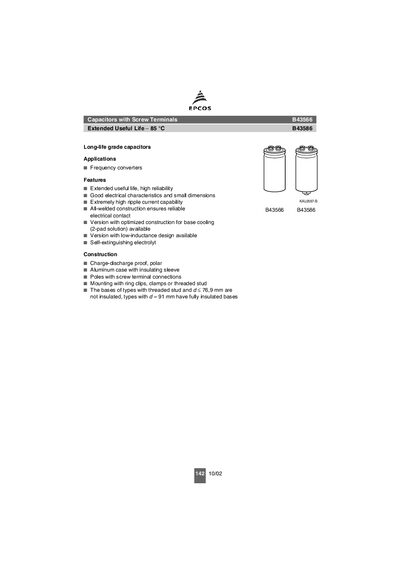

The EPCOS KAL0567-B B43566 B43586 long‑life grade capacitors datasheet provides specifications, dimensions, mounting options and performance data.
The KAL0567‑B series from EPCOS are long‑life aluminium electrolytic capacitors designed for frequency converters and similar applications. They feature extended useful life, high reliability, and a compact design with high ripple‑current capability.
The capacitors are available with screw‑terminal, ring‑clip, clamp or threaded‑stud mounting, and can be ordered in standard, 2‑pad or low‑inductance designs. Technical data include rated voltages up to 450 VDC, ripple‑current limits up to 30 A, and a useful life exceeding 250 000 h at 85 °C. This manual is written in German.
| Rated voltage (UR) | 350‑450 VDC |
|---|---|
| Maximum ripple current (I~max) | 30 A (76.9 mm × 220.7 mm case) |
| Self‑inductance (ESL) | ≈15 nH (d = 51.6 mm) |
| ESR (100 Hz, 20 °C) | ≤4 mΩ |
The rated voltage UR is 350 VDC to 450 VDC.
They can be mounted with ring clips, clamps, threaded studs, or with 2‑pad and low‑inductance designs.
Up to 30 A of ripple current is allowed.
