Cera Diode CDS3C16GTH is a high-voltage diode for ESD protection, with 3pF low capacitance and 16 V working voltage, and can be applied to desktop and notebook computers, portable handheld products, mobile communication, consumer products and liquid crystal displays.

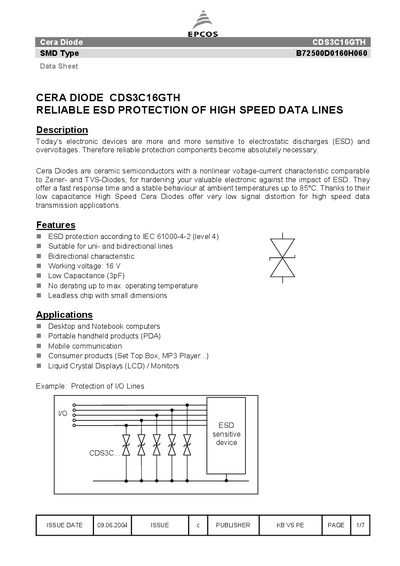

The Cera Diode CDS3C16GTH is a ceramic semiconductor designed for reliable ESD protection of high‑speed data lines. It offers a fast response, low capacitance (3 pF) and stable operation up to 85 °C, making it suitable for desktop, notebook, PDA, mobile communication and consumer electronics applications.
The sheet lists maximum ratings (16 V DC working voltage, 14 V RMS), operating temperature range (‑40 °C to +85 °C), storage limits (‑40 °C to +125 °C), and recommended soldering and packaging details, including 8 mm tape dimensions and solder pad geometry.
| Working voltage | 16 V |
|---|---|
| RMS working voltage | 14 V |
| Capacitance | 3 pF |
| Operating temperature range | -40 °C to +85 °C |
| Storage temperature range | -40 °C to +125 °C |
| Breakdown voltage | ≥150 V |
| Leakage current (at 16 V) | ≤10 µA |
| Package type | 8 mm tape |
The diode is rated for a DC working voltage of 16 V.
It has a low capacitance of 3 pF, suitable for high‑speed data lines.
