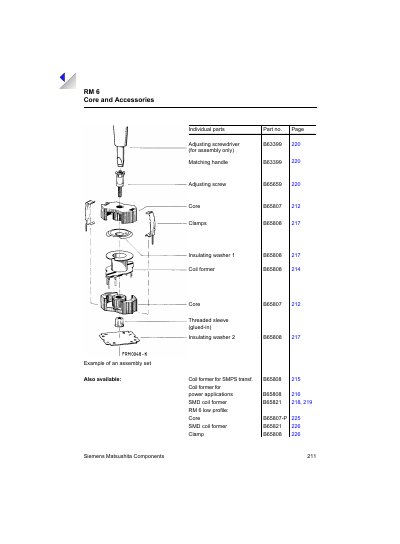

The handbook provides a complete parts list for the RM 6 Core magnetic core series, including individual components such as clamps, coil formers, insulating washers and adjusting screws. Each item is identified by its part number and ordering code, with details on material, dimensions and recommended usage.
Technical data for the cores are given, covering magnetic characteristics, weight per set, material specifications (e.g., AL value, GFR plastic), and Q‑factor values for various core variants. The document also includes recommended PCB layout guidance for SMD coil formers and information on solderability and temperature limits.
| Core material | AL (aluminium) with AL value nH |
|---|---|
| Approximate weight per set | 4.0 g/set |
| Maximum operating temperature (coil former) | 180 °C (UL 94 V‑0) |
| Solderability test Ta | 235 °C, 2 s |
Two clamps are required per set; the ordering code B65808‑A2203 specifies the clamp, and the document notes that two are required.
The permissible soldering temperature for the SMD coil former is 400 °C for up to 1 second.
