CeraDiode CDS3 Series is an SMD type ESD protection component suitable for single lines. It has superior parametric stability and bidirectional ESD protection, safely routing both positive and negative ESD events to the ground. The product is designed for highly sensitive electronic devices and effectively suppresses fast voltage transients.
The CeraDiode® CDS3 Series are ceramic, bidirectional ESD protection diodes in a 0603 surface‑mount package. They offer fast response (<0.5 ns) and stable performance from –40 °C to +85 °C, suitable for a wide range of consumer and industrial electronics.

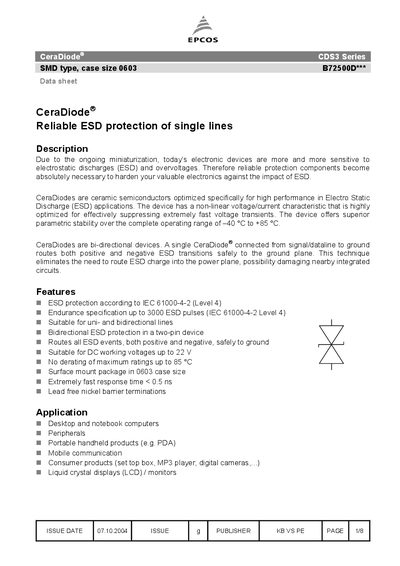

The sheet lists maximum ratings, electrical characteristics, dimensional drawings, recommended soldering profiles, and packaging details. It also includes part numbers for different voltage grades and ordering information.
| Operating temperature range | -40 °C to +85 °C |
|---|
It complies with IEC 61000‑4‑2 Level 4, providing up to 3000 ESD pulses.
The device has an extremely fast response time of less than 0.5 ns.
No, they are intended only for ESD protection and transient suppression, not for switching or voltage stabilization.
