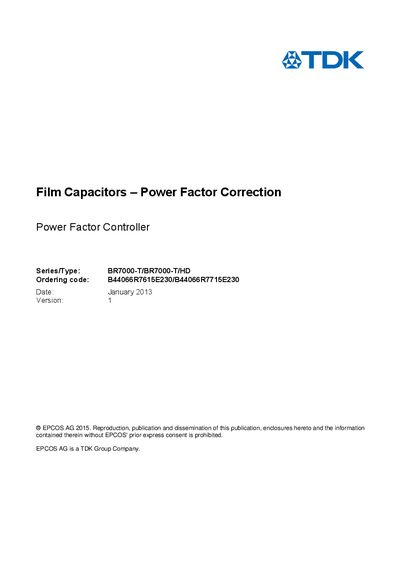

Technical data sheet for the EPCOS BR7000‑T/BR7000‑T/HD power factor controller, covering specifications, interfaces and operation modes.
The EPCOS BR7000‑T/BR7000‑T/HD is a power factor controller designed for three‑phase and single‑phase capacitor banks. It offers customizable transistor outputs, multiple measurement parameters, and a menu‑driven user interface with several language options.
The device provides two isolated RS485 interfaces, supports USB connection via an adapter, and includes features such as an oscilloscope mode, harmonic analysis, and programmable control series. It complies with IEC safety standards and is housed in a DIN‑43 700 panel‑mounted case.
| Operating voltage | 110 … 230 V AC ±15%, 50/60 Hz |
|---|---|
| Measuring voltage (3‑phase) | 3 × 30 … 440 V AC (L‑N), 50 … 760 V AC (L‑L) |
| Measuring current (3‑phase) | 3 × X: 5 A / X: 1 A selectable |
| Power consumption | < 3 VA |
| Sensitivity | 50 mA / 10 mA |
| Switching outputs | 15 transistor outputs (freely programmable) |
| Alarm relay | 1 |
| Message relay (programmable) | 1 |
| Fan control relay | 1 |
| RS485 interfaces | 2 independent isolated interfaces (MODBUS RTU) |
The controller operates from 110 V to 230 V AC with a tolerance of ±15 % at 50/60 Hz.
The device provides 15 transistor outputs that can be freely programmed for thyristor switching.
It includes two independent isolated RS485 interfaces (MODBUS RTU) and a USB‑adapter for direct PC connection.
The menu can be displayed in German (D), English (E), Spanish (ES), French (F), Russian (RU) and Turkish (TR).
