This document introduces the various inductors offered by EPCOS, including SMT types and 4-line high current inductors, which are suitable for various application scenarios.

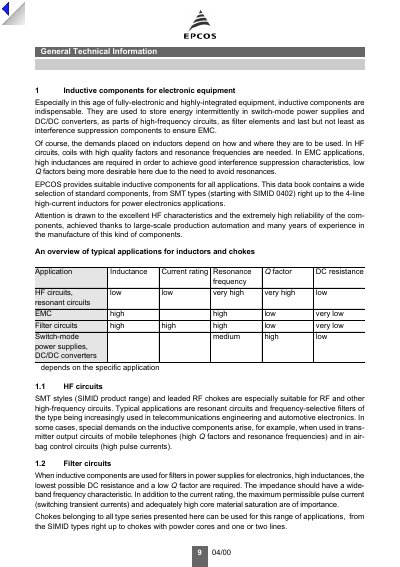

This data book presents EPCOS inductive components used in high‑frequency circuits, filter circuits, switch‑mode power supplies, DC/DC converters, and EMC applications. It outlines typical applications, performance requirements such as inductance, current rating, Q factor, and DC resistance, and provides guidance on selecting suitable parts.
The document also covers electromagnetic compatibility (EMC) fundamentals, interference sources, propagation modes, relevant standards, climatic categories, component sizes, and environmental considerations such as restricted substances.
| Maximum pulse current | up to four times the rated current |
|---|---|
| Reference temperature for measurements | 20 °C |
| Component size code (0402) | 1.0 mm × 0.5 mm |
