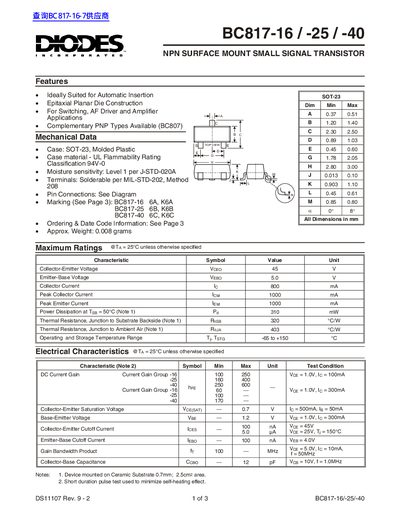

This datasheet details the electrical characteristics, maximum ratings, and mechanical data for Diodes Incorporated's BC817 series NPN surface mount small…
The document provides a comprehensive overview of the BC817-16/-25/-40 NPN Surface Mount Small Signal Transistor. It lists key features such as epitaxial planar die construction, suitability for switching and AF driver applications, and availability in SOT-23 molded plastic packages with UL 94V-0 flammability rating.
Technical specifications include maximum ratings for collector-emitter voltage (45 V), peak collector current (1000 mA), and power dissipation. The datasheet also details electrical characteristics like DC current gain groups (-16, -25, -40) and includes typical performance graphs for gain-bandwidth product and saturation voltage.
| Collector-Emitter Voltage (VCEO) | 45 V |
|---|---|
| Peak Collector Current (ICM) | 1000 mA |
| Operating and Storage Temperature Range | -65 to +150 °C |
| Case Type | SOT-23, Molded Plastic |
The available current gain groups are -16, -25, and -40.
Yes, it is ideally suited for automatic insertion due to its construction and package.
