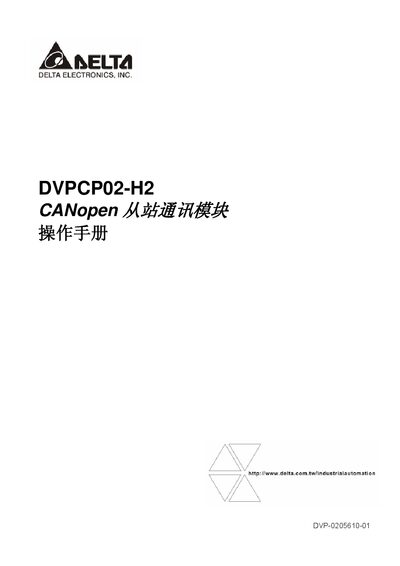

The Delta DVPCP02-H2 CANopen communication module operation manual provides specifications, installation, basic operation, settings, and troubleshooting for…
The DVPCP02-H2 is a CANopen slave communication module designed to connect DVP‑EH2 series PLCs to a CANopen network. It supports CAN2.0A, up to eight TxPDO and eight RxPDO objects, SDO server functions, and NMT services.
The manual covers product features, technical specifications, hardware dimensions, connector pinouts, address and function setting switches, installation on DIN rails, basic operation steps, internal register definitions, example network configurations, LED indicator meanings, and fault troubleshooting. This manual is written in Chinese.
| Power consumption | 2 W |
|---|---|
| Insulation voltage | 500 V |
| Operating temperature | 0 °C ~ 55 °C |
| Storage temperature | -25 °C ~ 70 °C |
| Supported CAN bus speeds | 10 kbit/s – 1 Mbit/s |
| Maximum TxPDO/RxPDO | 8 TxPDO and 8 RxPDO |
| SDO server functions | 1 |
| Connector type | 5.08 mm pluggable connector |
Turn off power, then use the two rotary switches X160 and X161 to set the address in hexadecimal; power the module back on after setting.
No. The function setting switch must be adjusted with power off; changes made while the module is running are ignored.
The POWER LED shows that the module is receiving power, RUN indicates normal operation, and ERR signals a fault condition.
