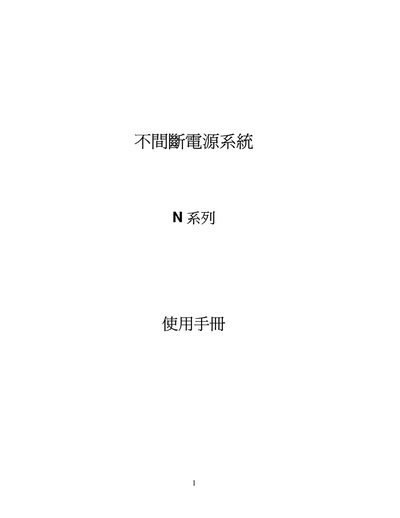

The Delta N series UPS user manual provides safety instructions, installation steps, specifications, and operation details for the UPS units.
This manual covers important safety instructions, including ambient temperature limits, electrical shock precautions, and FCC compliance for both residential (Class B) and commercial (Class A) installations. It also describes the required AC output disconnect switch, over‑current protection, and battery replacement guidelines.
Installation guidance details proper mounting, grounding, and wiring, while the specifications section lists model options (1 KVA, 2 KVA, 3 KVA), input voltage ranges, output power, efficiency, and supported battery types. Communication interfaces such as RS‑232, LAN, and SNMP/HTTP adapters are also described.
| Output Power (1 KVA model) | 800 W |
|---|---|
| Output Power (2 KVA model) | 1600 W |
| Output Power (3 KVA model) | 2400 W |
| Input Voltage Range | 100 V – 240 V |
| Supported Batteries | GP1270‑F2 (CSB), NP7‑12 (YUASA), 1234W (CSB) |
| Maximum Ambient Temperature | 40 °C (104 °F) |
The ambient temperature must not exceed 40 °C (104 °F).
Batteries of GP1270‑F2 (CSB), NP7‑12 (YUASA), and 1234W (CSB) are supported.
The UPS accepts input voltages from 100 V to 240 V (including 110 V, 120 V, 208 V, 220 V, 230 V).
