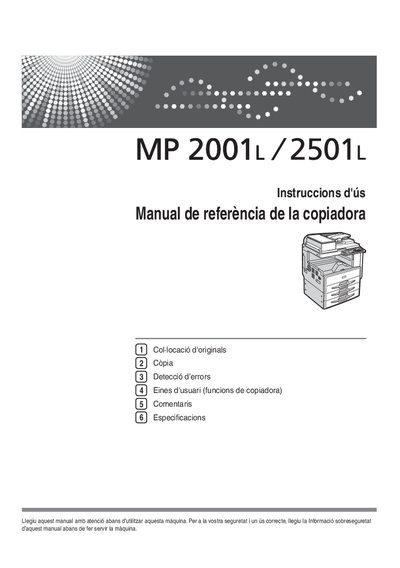

User manual for the D161-7617 copier, covering safety, operation, error detection, and technical specifications.
This manual provides detailed instructions for safely operating the D161-7617 copier, including placement of originals, copy functions, error detection, and user tools. It also contains important safety information, such as laser class compliance and power‑supply requirements.
The document includes sections on machine types, control panel operation, power‑on and power‑off procedures, maintenance, and technical specifications like copy speed, laser output, and electrical requirements.
| Laser output power | 9 mW |
|---|---|
| Laser wavelength | 648‑663 nm |
| Laser beam divergence (vertical) | 28°‑35° |
| Power supply | 220‑240 V, 50/60 Hz, 8 A |
| Copy speed (type 1) | 20 copies/min |
| Copy speed (type 2) | 25 copies/min |
The copier complies with IEC 60825‑1:2007 (EN 60825‑1:2007) for laser products of class 1.
It requires a 220‑240 V, 50/60 Hz power source with a current draw of up to 8 A.
