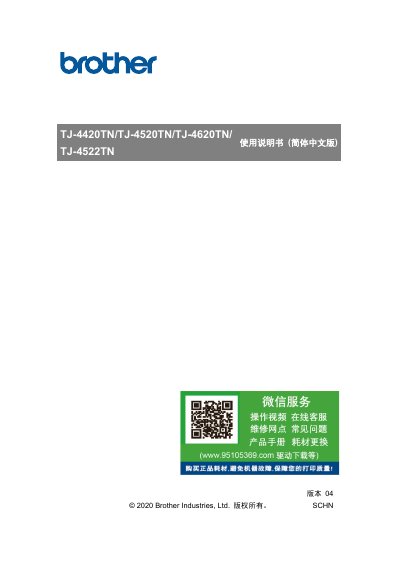

The Brother TJ series label printer manual provides setup, operation, troubleshooting, and maintenance instructions for four model variants.
This manual covers the complete workflow for the Brother TJ‑4420TN, TJ‑4520TN, TJ‑4620TN and TJ‑4522TN label printers, including unpacking, component overview, and installation of power, ribbon, and media. Detailed sections explain how to adjust print quality, connect via USB, Ethernet, Wi‑Fi or Bluetooth, and use the built‑in software tools.
Later chapters describe sensor calibration, advanced settings, file management, diagnostic functions, and routine maintenance such as cleaning the print head and rollers. A full specifications table and troubleshooting guide help users resolve common errors. This manual is written in Chinese.
| LCD display (TJ‑4420TN/TJ‑4520TN/TJ‑4620TN) | 320 × 240 pixels |
|---|---|
| LCD display (TJ‑4522TN) | 480 × 272 pixels, 16‑bit color, resistive touch screen |
| Printing method | Thermal transfer and thermal direct |
| Maximum print width | 104 mm |
| Maximum print length (TJ‑4420TN) | 25 400 mm |
| Maximum print speed (TJ‑4420TN) | 356 mm/s |
| Maximum print speed (TJ‑4520TN/TJ‑4522TN) | 305 mm/s |
| Maximum print speed (TJ‑4620TN) | 152 mm/s |
| Print resolution (TJ‑4420TN) | 203 dpi |
| Print resolution (TJ‑4520TN/TJ‑4522TN) | 300 dpi |
| Print resolution (TJ‑4620TN) | 600 dpi |
Select the sensor calibration option in the menu (section 6.1.1) and follow the on‑screen prompts to calibrate the gap or black‑mark sensor.
Refer to section 9.1 of the manual for the list of recommended microSD card types.
