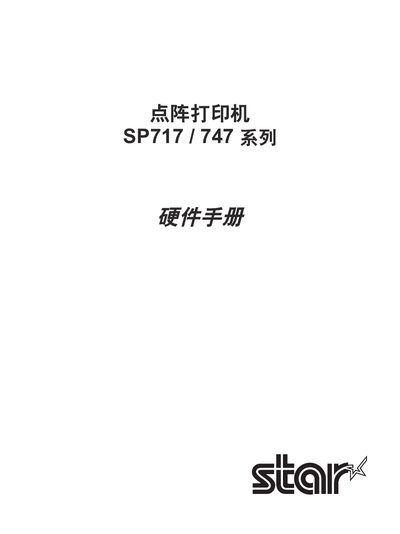

The Star SP717/747 Series dot matrix printer hardware manual provides installation steps, component descriptions, interface connections, maintenance…
This hardware manual covers the Star SP717/747 Series dot matrix printer, a device commonly used in POS, banking and computer peripheral applications. It explains the printer's components, wiring options, and maintenance requirements to help users set up and keep the printer operating reliably.
Key sections include unboxing and installation guidance, detailed descriptions of parts and terminology, step‑by‑step instructions for connecting RS‑232C, parallel, USB and Ethernet interfaces, paper and ribbon loading, jam prevention, peripheral driver circuitry, general specifications, DIP switch settings, and memory switch configuration.
| USB interface speed | 12 Mbps (full‑speed) |
|---|---|
| USB compliance | USB 2.0 |
| Ethernet interface speed | 10/100 Mbps |
| Ethernet compliance | IEEE 802.3 |
| Power supply voltage | 24 V |
| Maximum power‑line current | 1.0 A |
The driver circuit supplies 24 V with a maximum current of 1.0 A.
