Cisco Aironet 1230AG Series Access Points are wireless LAN products with antenna connectors and durable metal casing. They provide flexible antenna and installation options, support dual IEEE 802.11a and 802.11g wireless bands, offer 108Mbps capacity, and support 802.11i and WPA2 security. They are suitable for industrial customers and harsh environments.
The Cisco Aironet 1230AG series access point is a modular AP with antenna connectors that allow flexible antenna options for extended signal range and durability in harsh environments. It supports dual IEEE 802.11a and 802.11g wireless bands, offering up to 108 Mbps capacity and hardware‑assisted AES encryption for WPA2 security.

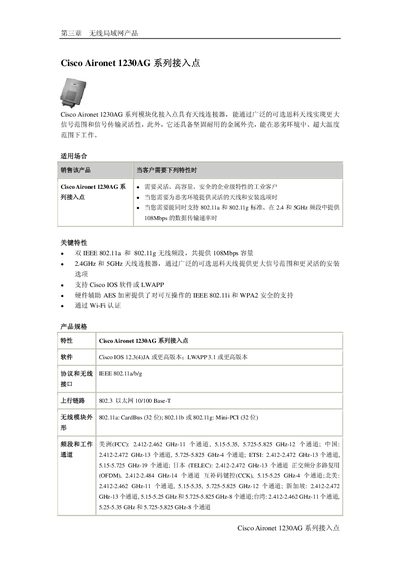

The leaflet lists detailed technical specifications, including operating temperature from -4 °F to 122 °F, maximum power consumption of 11 W, dimensions of 1.66 × 6.562 × 7.232 in, and weight of 783 g. It also provides product numbers, ordering information, and supported management protocols such as SNMP, SSH, and HTTPS. This manual is written in Chinese.
| Wireless standards | IEEE 802.11a/bg |
|---|---|
| Maximum data rate | 108 Mbps |
| Operating temperature range | -4 °F to 122 °F (-20 °C to 50 °C) |
| Maximum power consumption | 11 W |
| Dimensions (H × W × D) | 1.66 × 6.562 × 7.232 in (4.22 × 16.67 × 18.37 cm) |
| Weight | 783 g (27.6 oz) |
It supports dual‑band IEEE 802.11a and 802.11g wireless standards.
The access point consumes up to 11 W of power.
It operates from -4 °F to 122 °F (‑20 °C to 50 °C).
