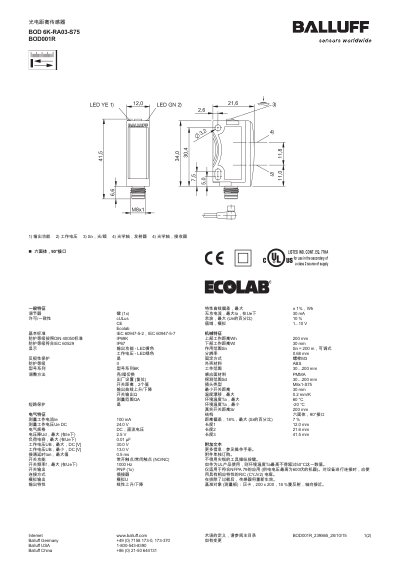

Datasheet for the Balluff BOD 6K-RA03-S75 photoelectric distance sensor, detailing electrical, mechanical, and optical specifications.
This document is a technical datasheet for the Balluff BOD 6K-RA03-S75 photoelectric distance sensor. It provides key specifications including output functions, working voltage, optical axis details, and mechanical characteristics. The sensor is designed for industrial automation applications requiring high precision and reliability. This manual is written in Chinese.
| Working Voltage (Max) | DC 30.0 V |
|---|---|
| Working Voltage (Min) | DC 13.0 V |
| Switching Frequency (Max) | 1000 Hz |
| Upper Working Distance | 200 mm |
| Lower Working Distance | 30 mm |
| Resolution | 0.68 mm |
| Operating Temperature (Max) | 60 °C |
| Operating Temperature (Min) | -20 °C |
| Protection Class | IP69K |
The maximum DC operating voltage is 30.0 V.
For UL use, the maximum ambient temperature is 50°C.
The maximum switching frequency is 1000 Hz.
