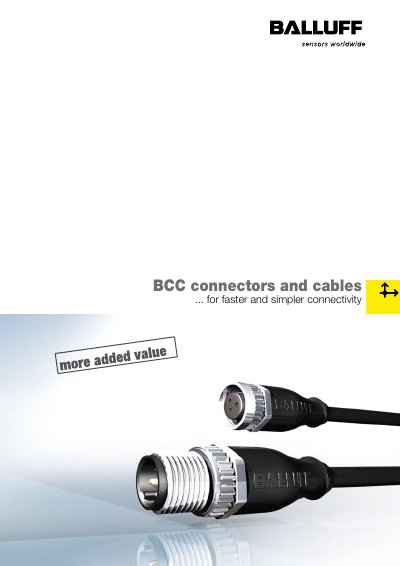

A product overview for Balluff BCC connectors and cables, detailing specifications, materials, tightening torques, and ordering codes for M8 and M12 series.
This document provides a comprehensive overview of Balluff's BCC connectors and cables, designed for factory automation connectivity. It covers various connector types, including M8 and M12 series, available in male and female configurations with or without LEDs. The product line supports both PUR and PVC cable materials, offering high protection ratings up to IP 69K and compatibility with drag chains.
| Enclosure rating | IP 60...67, IP 68, IP 69K |
|---|---|
| Permissible tightening torque M8 | 0.4 Nm |
| Permissible tightening torque M12 | 0.6 Nm |
| Ambient temperature Ta (PUR) | -25 °C...+80 °C |
| Ambient temperature Ta (PVC) | -5 °C...+80 °C |
The permissible tightening torque for M8 connectors is 0.4 Nm.
The permissible tightening torque for M12 connectors is 0.6 Nm.
The ambient temperature range for PUR cables is -25 °C to +80 °C.
