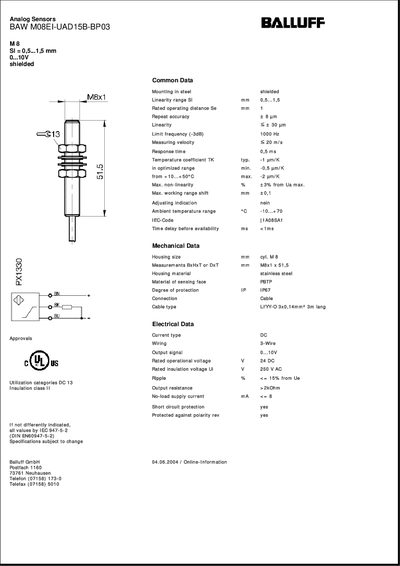

This document describes the technical specifications and characteristics of the BAW M08EI-UAD15B-BP03 M 8 Sl analog sensor, including mounting method, linearity range, rated operating distance, repeat accuracy, limit frequency, measuring velocity, response time, temperature coefficient, etc.
The BAW M08EI-UAD15B-BP03 is an analog proximity sensor with a stainless‑steel housing and M8 mounting thread. It is designed for industrial environments, offering IP67 protection and a 3‑wire shielded cable connection.
The document lists detailed specifications including linearity range, response time, temperature limits, electrical ratings, and mechanical dimensions, allowing engineers to assess suitability for various applications.
| Cable type | LifYY‑O 3×0.14 mm, 3 m long |
|---|---|
| Rated insulation voltage | 250 V AC |
| Linearity range | 0.5 … 1.5 mm |
| Housing material | Stainless steel |
