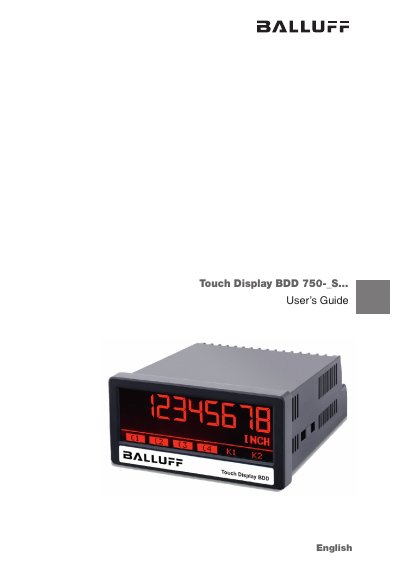

This user's guide covers safety, installation, electrical connections, operation modes, parameter configuration, and technical specifications for the…
The Balluff BDD 750-S is a panel-mounted SSI display device designed for industrial machines and systems. It features intuitive operation via a resistive touchscreen and allows configuration of various functions through a parameter menu. The device supports both Master and Slave operation modes for SSI interfaces and includes programmable control inputs and relay outputs.
To edit the parameters, press the touchscreen for 3 seconds.
The unit accepts DC supply from 18 to 30 V at the terminals 1 and 2.
