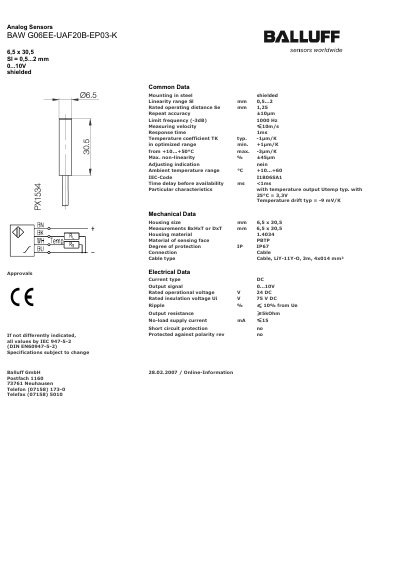

This document describes the specifications and characteristics of the BAW G06EE-UAF20B-EP03-K 6.5 x 30.5 Sl = 0.5.2 mm 0.10V shielded analog sensor, including linearity range, rated operating distance, repeat accuracy, limit frequency, response time, etc.
The BAW G06EE-UAF20B-EP03-K is an analog displacement sensor designed for industrial automation. It offers a linearity range of 0.5–2 mm, a repeat accuracy of ±10 µm, and a response time of 1 ms, making it suitable for precise position measurement.
The sensor features an IP67 protection rating, a compact housing size of 6.5 × 30.5 mm, and a 0–10 V output signal. It operates from a 24 V DC supply, tolerates ambient temperatures from +10 °C to +60 °C, and includes a 3‑meter shielded cable (LiY‑11Y‑O, 4×0.14 mm²). This manual is written in Chinese.
| Linearity range | 0.5–2 mm |
|---|---|
| Rated operating distance | 1.25 mm |
| Repeat accuracy | ±10 µm |
| Limit frequency (-3 dB) | 1000 Hz |
| Measuring velocity | ≤10 m/s |
| Response time | 1 ms |
| Output signal | 0–10 V |
| Rated operational voltage | 24 V DC |
| Rated insulation voltage | 75 V DC |
| Degree of protection | IP67 |
| Housing size | 6.5 × 30.5 mm |
| No‑load supply current | ≤15 mA |
The sensor provides a 0 to 10 V output signal.
The sensor is rated for a 24 V DC operating voltage.
It has an IP67 degree of protection.
The response time is 1 ms.
