This user guide covers the installation, configuration, and operation of Balluff BNI PNT-502 and BNI PNT-508 IP67 modules for PROFINET and IO-Link applications.

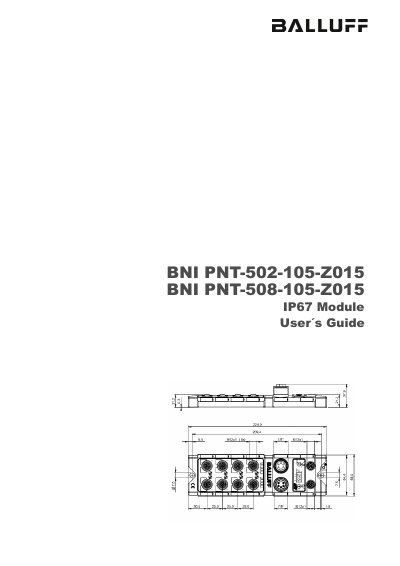

The document serves as a comprehensive user's guide for the Balluff BNI PNT-502-105-Z015 and BNI PNT-508-105-Z015 IP67 modules. It details the mechanical and electrical connections, including power supply requirements and PROFINET/IO-Link interface specifications. The guide provides instructions on how to configure the modules using GSDML files and parameterize IO-Link devices.
| Housing protection type | IP 67 (only in plugged-in and screwed-down state) |
|---|---|
| Supply voltage | 18...30.2 V DC |
| Data transmission rate | 10/100 Mbit/s |
| Max. cable length | 100 m |
It is a decentral IO-Link input and output module for connecting to a PROFINET network.
Installation must be performed only by trained specialists who are familiar with the product.
The total current must not exceed 9A, even in series connection.
