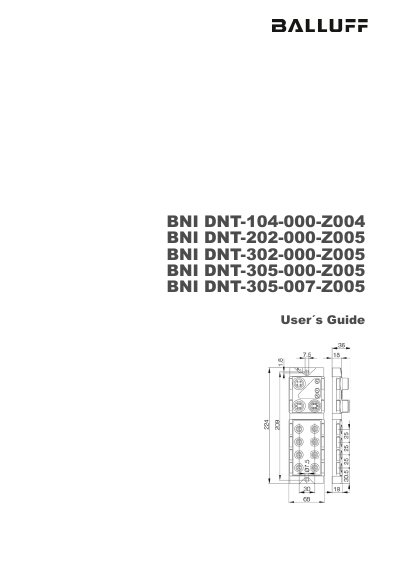

The Balluff BNI DNT-104-000-Z004 User Guide provides safety instructions, installation, commissioning, technical data and diagnostics for the DeviceNet…
This guide explains the purpose and safe handling of the BNI DNT-104-000-Z004, a decentral I/O module for DeviceNet networks. It includes safety warnings, proper use instructions, and information on resistance to aggressive substances.
The manual covers mechanical and electrical installation, connection options, commissioning steps, parameter configuration, and diagnostic LED indicators. Technical data such as housing material, enclosure rating, weight, supply voltage, current consumption and operating temperature are listed, along with ordering information and scope of delivery.
| Housing material | Die-cast zinc nickel‑plated matte finish |
|---|---|
| Enclosure rating | IP67 (only in plugged‑in and screwed state) |
| Weight | approx. 580 g |
| Supply voltage | 18 … 30.2 V DC |
| No‑load current consumption | ≤ 100 mA |
| Operating temperature | -5 °C … +70 °C |
All power must be disconnected before servicing the equipment.
The delivery includes the DeviceNet module, four M12 dummy plugs, a ground strap, an M4×6 screw, a lock washer and 20 labels.
LEDs indicate bus status, I/O port status, function, power supply voltage and fault conditions such as short circuits.
