AXIS 216FD is a high-performance fixed dome network camera for professional indoor surveillance and remote monitoring. It is compact, economical and can effectively prevent intentional damage. Equipped with high-quality progressive scan sensors and advanced image processing technology, this camera can capture clear images even in low-light conditions. AXIS 216FD is supported by a wide range of video management software, providing a perfect solution for security surveillance via local area network or internet for stores, shopping malls, banks and other office buildings.
The Axis 216FD is a high‑performance fixed‑hemisphere network camera designed for indoor surveillance and short‑range monitoring. It features a varifocal Fujinon lens, low‑light sensitivity, PoE power, and dual‑direction audio support.

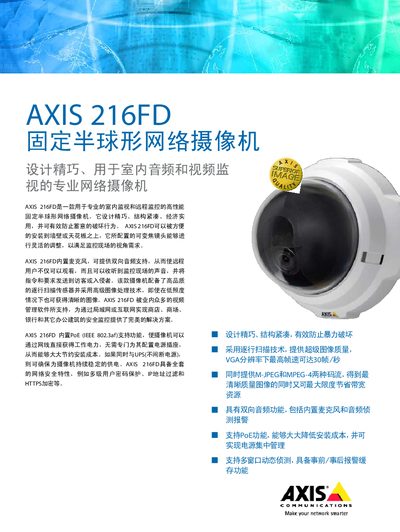

This manual covers hardware specifications, PoE power options, video and audio stream settings, web‑based configuration, API integration, and environmental requirements, along with mounting instructions and optional accessories. This manual is written in Chinese.
| Image Sensor | 1/4" RGB CMOS |
|---|---|
| Lens | Fujinon, F1.3 varifocal 2.8‑10 mm |
| Horizontal View Angle | 73°‑207° |
| Minimum Illumination | 0.3 lux at F1.3 |
| Video Resolutions | 640×480 to 160×120 |
| Maximum Frame Rate | 30 fps at VGA (MJPEG/MPEG‑4) |
| Video Formats | MJPEG and MPEG‑4 (ASP, Simple Profile) |
| Audio Input | AAC‑LC 8‑32 kbps, G.711 PCM 64 kbps, G.726 ADPCM 32/24 kbps |
| Dimensions | 94 × 144 × 132 mm (3.77 × 5.7 × 5.29 in) |
| Weight | 425 g (15 oz) |
It supports Motion JPEG (MJPEG) and MPEG‑4 (Advanced Simple Profile and Simple Profile).
The camera can produce clear images with as little as 0.3 lux at an aperture of F1.3.
Configuration can be done through the web interface, VAPIX API, FTP, email, HTTP notifications, and various network protocols.
