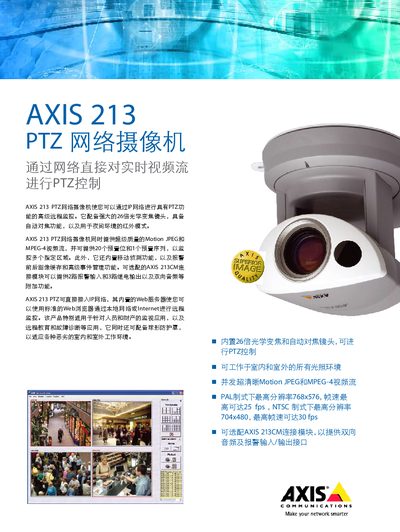

The document introduces the features and characteristics of the AXIS 213 PTZ network camera, including built-in optical zoom and autofocus lens, PTZ control, suitable for indoor and outdoor environments, providing Motion JPEG and MPEG-4 video streams, with a maximum resolution of 768x576 (PAL) and 704x480 (NTSC), optional AXIS 213CM connection module for bidirectional audio and alarm functions.
This manual describes the AXIS 213 PTZ network camera, a network‑connected device with PTZ control, 26× optical zoom, and infrared night‑vision. It includes details on video streams, audio, alarm I/O, and optional connection modules.
The document also covers system integration, firmware upgrade procedures, supported operating systems, and accessories such as the AXIS 213CM connection module and IP65‑rated dome housing for harsh indoor/outdoor environments. This manual is written in Chinese.
| Image sensor | 144 line‑scan CCD |
|---|---|
| Minimum illumination (color) | 1 lux, F1.6 |
| Minimum illumination (infrared) | 0.1 lux, F1.6; IR range 3 m |
| Video compression | Motion JPEG, MPEG‑4 (ASP, SP profiles) |
| Maximum resolution (PAL) | 768 × 576 |
| Maximum resolution (NTSC) | 704 × 480 |
| Maximum frame rate (PAL) | 25 fps |
| Maximum frame rate (NTSC) | 30 fps |
| PTZ presets | 20 preset positions |
| Audio codecs | G.711 PCM 64 kbps, G.726 ADPCM 32/24 kbps |
| CPU | ETRAX 100LX 32‑bit RISC |
| RAM | 32 MB |
| Flash memory | 4 MB |
| Power consumption | 13 W DC external, max 24 W |
| Operating temperature / humidity | 20‑80 °C, 20‑80 % RH (non‑condensing) |
| Dimensions | 130 × 104 × 130 mm |
| Weight | 700 g |
It supports 20 preset positions.
The camera provides Motion JPEG and MPEG‑4 video streams.
Firmware can be upgraded via HTTP or FTP by downloading the latest version from the Axis website.
The camera has a 26× optical zoom lens.
