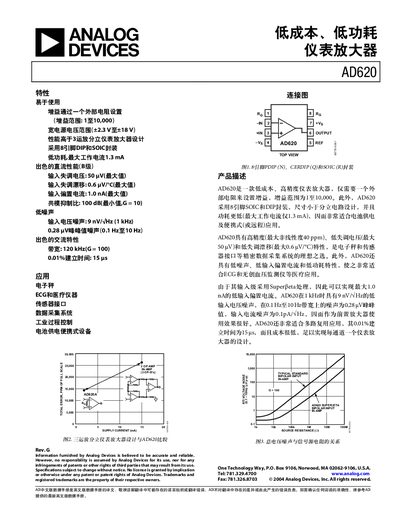

The AD620 datasheet provides specifications, electrical characteristics, and package information for the Analog Devices AD620 instrumentation amplifier.
The AD620 is a low‑cost, low‑power instrumentation amplifier offering a gain range of 1 to 1000 with excellent DC precision and low noise. It is suited for applications such as medical instrumentation, industrial process control, and sensor signal conditioning. The document includes performance graphs, typical application circuits, and detailed pin‑out descriptions.
Key specifications include a supply voltage range of ±2.3 V to ±18 V, typical input offset voltage of about 50 µV, voltage noise of 50 µV (0.1–10 Hz), and various package options (PDIP, CERDIP, SOIC). Thermal ratings, ESD protection, and recommended layout guidelines are also covered.
| Gain range | 1 to 1000 |
|---|---|
| Output voltage swing | up to 30 V p‑p |
The AD620 gain can be set from 1 to 1000.
The AD620 is offered in PDIP (N), CERDIP (Q), and SOIC (R) packages.
