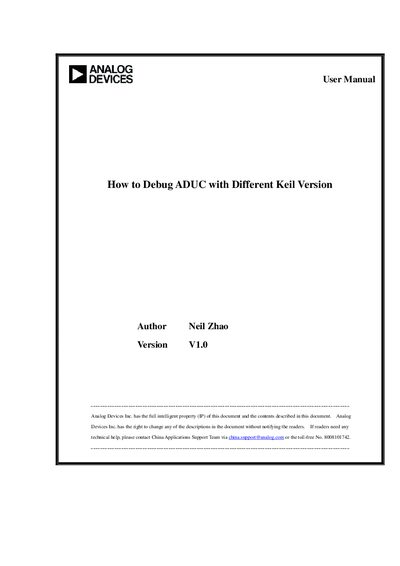

Analog Devices ADuC Debug Guide

About this manual

This manual explains how to set up and debug ADuC microcontroller families using Keil uVision 3.22, 3.55a, and uVision 4.03. It lists which Keil version is bundled with each ADuC product line and provides step‑by‑step instructions for project creation, compiler configuration, and generating HEX files for programming.

The document also covers interrupt programming differences between Keil versions, J‑LINK debugger configuration, and includes an appendix summarizing supported Keil releases. Contact information for Analog Devices China Application Support is provided throughout.

What's inside

• Goal
• Supported Keil Versions
• Project Setup
• Compiler and HEX File Configuration
• Interrupt Programming
• J‑LINK Debugger Settings
• Appendix

Specifications

Frequently asked questions

How do I generate a HEX file for programming the ADuC device?

In the Keil project options, select "Create HEX File" under the Output tab.
