The ADM202 is a 2‑channel RS‑232 driver/receiver that operates from a single 5 V supply, offering ±9 V output swing and low power consumption.

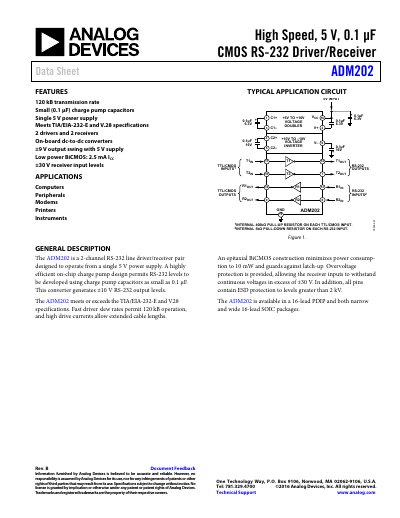

The ADM202 is a 2‑channel RS‑232 line driver/receiver pair designed to operate from a single 5 V power supply. It uses an on‑chip charge pump with 0.1 µF capacitors to generate ±10 V RS‑232 levels and meets TIA/EIA‑232‑E specifications.
The device is available in 16‑lead PDIP and SOIC packages, consumes as little as 2.5 mA typical current, and includes over‑voltage and ESD protection. Absolute maximum ratings allow up to ±30 V on the receiver inputs and a VCC rating of 6 V.
| Supply voltage | 5 V ±10% |
|---|---|
| Output voltage swing | ±5 to ±9 V |
| Power supply current (ICC) | 2.5 mA typ, 6.0 mA max |
| Input low‑level threshold (VINL) | 0.8 V |
| Input high‑level threshold (VINH) | 2.4 V |
| RS‑232 input voltage range | −30 V to +30 V |
| Output resistance | 300 Ω |
The device operates from a 5 V supply with a tolerance of ±10 %.
The output voltage swing is specified as ±5 V to ±9 V.
The receiver inputs can withstand continuous voltages up to ±30 V.
