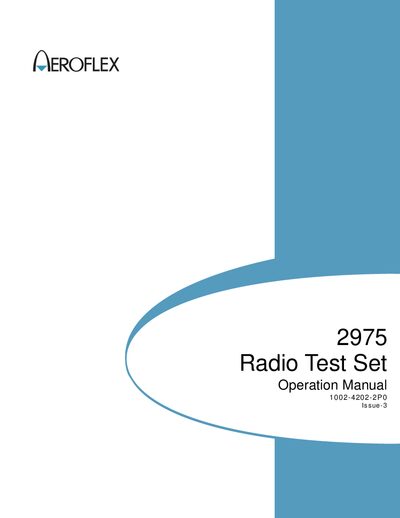

The Aeroflex 2975 Radio Test Set Operation Manual provides safety guidelines, specifications, and step‑by‑step instructions for using the instrument.
This manual covers safety and EMC requirements, proper grounding, ESD protection, and handling precautions for the 2975 Radio Test Set. It also lists the required warm‑up time, fuse specifications, and recommended accessories.
The document is organized into sections on description, operation, optional features, applications, remote commands, and system settings, with detailed specifications for frequency range, power output, amplitude, resolution, and accuracy.
| Frequency Range | 1 MHz to 2.7 GHz |
|---|---|
| GEN PORT VSWR | 2.05:1 max |
| GEN PORT Power | 10 W for 30 sec |
| Amplitude Range (GEN PORT) | +10 to -110 dBm |
| Resolution | 1 Hz |
| Accuracy (Amplitude) | ±1.5 dB (≤1.3 GHz), ±2.5 dB (>1.3 GHz) |
| Warm‑up Time | 5 minutes |
A warm‑up time of 5 minutes is required for the performance requirements to be met.
