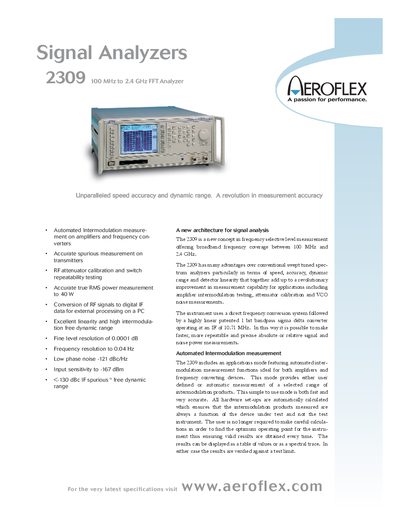

The Aeroflex 2309 Signal Analyzer specification sheet details its 100 MHz‑2.4 GHz frequency range, high dynamic range, and extensive interface options.
The Aeroflex 2309 is a 100 MHz to 2.4 GHz FFT signal analyzer offering automated intermodulation measurement, true RMS power measurement up to 40 W, and fine level resolution of 0.0001 dB. It features a low‑phase‑noise local oscillator, high linearity, and a 1‑bit sigma‑delta converter for fast, accurate results.
The instrument provides multiple interfaces including GPIB, RS‑232, parallel printer port, and an Auxiliary I/O port for high‑speed data transfer to a PC via a National Instruments PCI‑6534 digital I/O card. Optional accessories such as the MIPlot software and various cables support external processing, reporting, and extended functionality.
| Frequency range | 100 MHz to 2.4 GHz |
|---|---|
| Span | 10 Hz to 300 kHz |
| Phase noise (470 MHz, 10 kHz offset) | <‑115 dBc/Hz |
| Maximum input sensitivity | -164 dBm (0.04 Hz BW) |
| Maximum input power (continuous) | 40 W (+46 dBm) |
| Display resolution | 0.01 dB |
| Power consumption | 120 VA maximum |
| Dimensions (W×H×D) | 419 mm × 177 mm × 488 mm |
| Weight | <17 kg |
The 2309 covers frequencies from 100 MHz up to 2.4 GHz.
It can measure up to 40 W continuous (50 W for short bursts).
It operates from 100 V to 240 V AC and consumes up to 120 VA.
